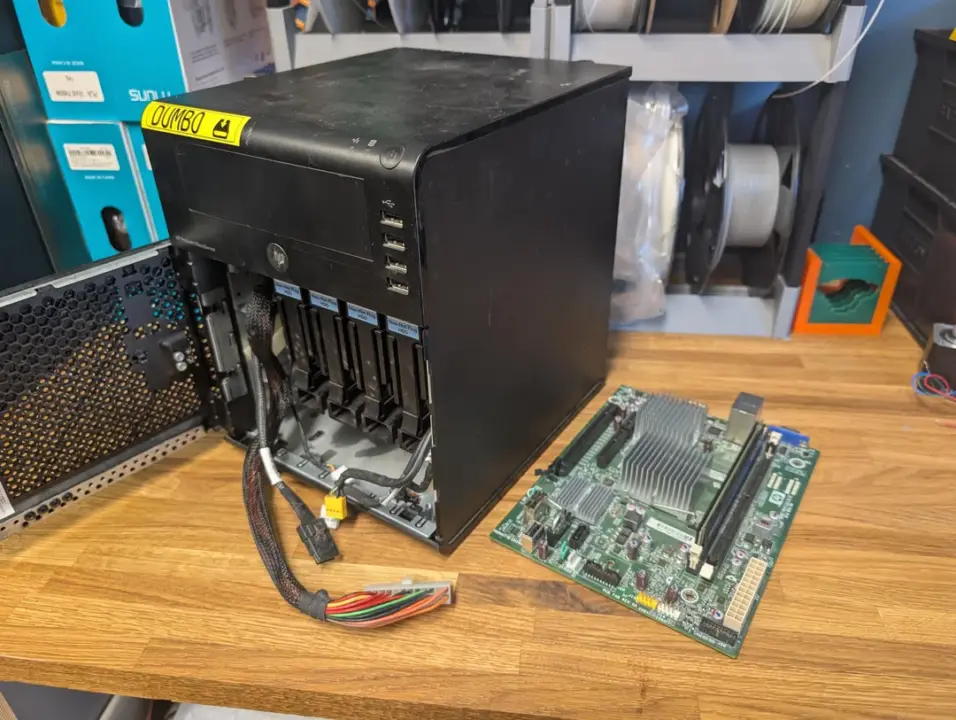

HP N40L Server Revived with Raspberry Pi CM5 Custom Motherboard

A community hardware mod offers a practical way to extend the life of the HP ProLiant MicroServer N40L, a server model that has long outlived its original support lifecycle. This project matters because it provides a viable path for users to keep legacy networking and storage hardware running without replacing the entire chassis. The modification replaces the obsolete internal components with modern, energy-efficient technology.

Community project swaps obsolete AMD parts for modern CM5 SoC

The core of the upgrade involves a custom-designed motherboard that integrates a Raspberry Pi Compute Module 5 (CM5). This system-on-chip replaces the original AMD processor and DDR3 memory that came with the N40L when it shipped. The custom PCB retains the physical footprint of the original board to fit inside the existing server case.

HP N40L Upgrade Specifications

• Original CPU: AMD
• Original Memory: DDR3
• Custom Module: Raspberry Pi CM5
• Storage Upgrade: M.2 NVMe SSD
• Power Interface: 24-pin

The custom board includes essential connectivity options such as Ethernet and USB ports, which are routed to match the original chassis openings. Power delivery uses a standard 24-pin connector, allowing the system to draw power from the existing server power supply. An M.2 NVMe SSD slot has been added to the design, providing significantly faster storage access than the original setup.

According to the project description, the new configuration delivers approximately double the performance of the original AMD and DDR3 combination. The upgrade also improves power efficiency, which is a key benefit for always-on server hardware that runs continuously. These gains make the decade-old chassis usable for modern light workloads without generating excessive heat.

This modification demonstrates how third-party hardware projects can breathe new life into discontinued enterprise equipment. Users with spare N40L units can now access modern storage speeds and improved processing power through a single board replacement. The project highlights a sustainable approach to handling older IT infrastructure by focusing on component-level upgrades rather than full replacements.
