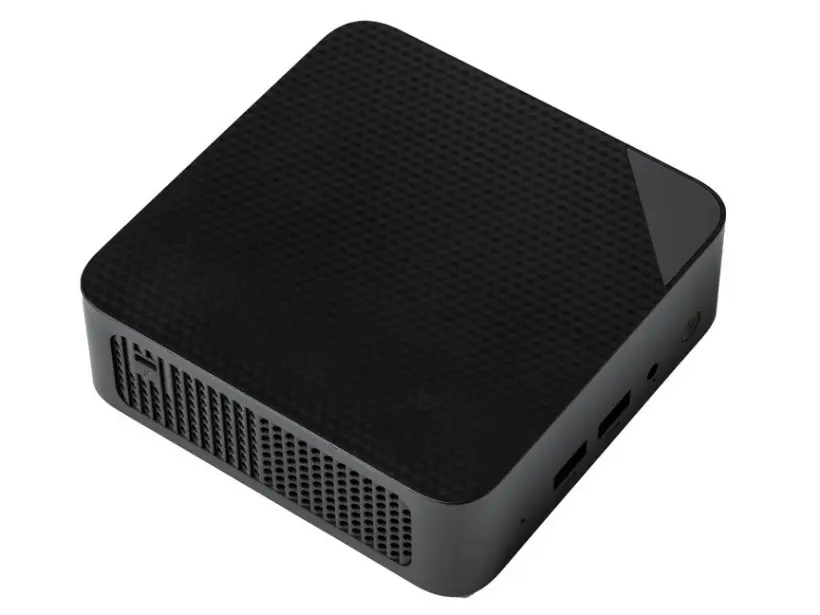

Maxtang MUC-FP551 mini PC brings AMD Picasso APUs to compact embedded builds

Hardware buyers looking for compact embedded solutions now have a new option in the form of the Maxtang MUC-FP551 mini PC. This release matters because it offers a rugged, small-form-factor chassis designed for industrial or commercial deployments where space is tight. The unit provides a flexible hardware foundation that adapts to different processing needs without requiring a larger footprint.

Compact chassis supports multiple AMD processors for industrial use

The MUC-FP551 serves as a versatile platform built around AMD's "Zen+" microarchitecture. It supports a range of "Picasso" APUs, including the consumer-grade Ryzen 7 3700U and Ryzen 5 3500U, as well as the Ryzen Embedded R2314 and R2514 processors. This variety allows system integrators to select the exact performance tier required for their specific application.

Specifications

• CPU: AMD Ryzen 7 3700U, Ryzen 5 3500U, Ryzen Embedded R2314, R2514
• Dimensions: 112.4 x 112.4 x 35.5 mm
• Memory: 2x DDR4 SO-DIMM slots
• Storage: 1x M.2 2280, 1x M.2 2242
• Front I/O: 2x USB-A 10Gbps, 1x 3.5mm audio

The chassis measures 112.4 by 112.4 by 35.5 millimeters and operates on a 19V DC power input. It maintains an adjustable thermal design power between 15 and 35 watts to balance energy consumption with performance. The system supports an operating temperature range from 0 to 50 degrees Celsius, ensuring stability in varied environmental conditions.

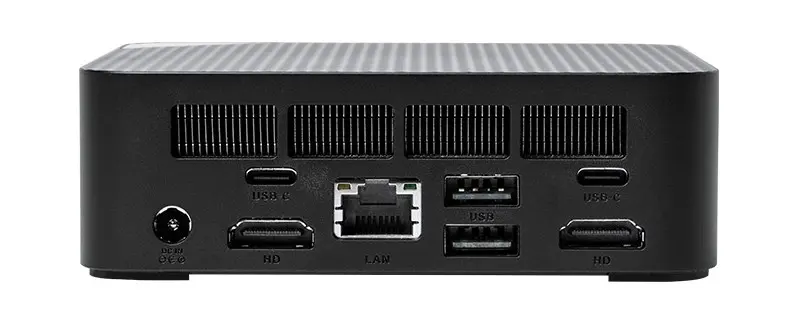

Connectivity and expansion options are robust for a device of this size. The front panel includes two USB-A ports with 10Gbps speeds and a 3.5mm combo audio jack. The rear panel features a full-featured USB-C port at 10Gbps, a secondary USB-C port at 5Gbps, two legacy USB-A ports at 480Mbps, dual HDMI outputs, and a 1GbE RJ45 network port. Storage flexibility is provided by one M.2 2280 slot and one M.2 2242 slot, with support for M.2 2230 Wi-Fi cards.

Maxtang released the MUC-FP551 on June 30, 2024, as a dedicated embedded computing solution. The product combines compact dimensions with industrial-grade thermal tolerances and comprehensive I/O. This configuration targets users who require reliable, space-efficient hardware for continuous operation in professional settings.
