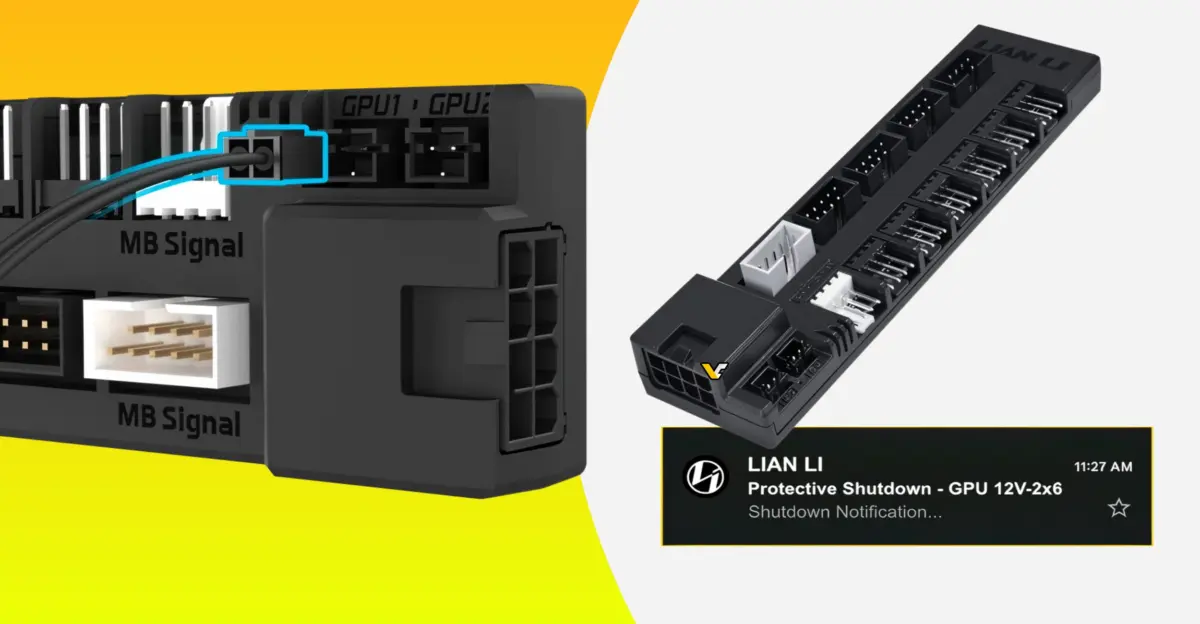

Lian Li EDGE Hub ADV shuts down PC if GPU cable overheats

GPU power connectors are a known failure point in modern builds, and LIAN LI addresses this risk with the EDGE Hub ADV. This internal hub monitors the temperature at the graphics card power connection to prevent hardware damage. Buyers who use high-power GPUs can now track connector heat directly from their system software. The device integrates into the PC case to provide early warnings before a cable melts or fails.

The hub uses a sensor in the 12V-2×6 cable to trigger automatic shutdown

The hub connects to the motherboard via USB and manages six PWM fan headers. It also provides four USB headers that expand into seven downstream USB connections. LIAN LI includes a 650mm 12V-2×6 cable with a built-in NTC sensor for the primary monitoring function. This sensor sends temperature data to the hub, which relays the information to the L-Connect 3 software.

Specifications

• GPU Power Connector Monitoring: Supports two connector sensors using NTC (negative temperature coefficient) sensors built into 12V-2×6 cables
• Shutdown Trigger: Automatic PC shutdown triggered by user-defined temperature limit via L-Connect 3 software
• Fan Connections: Six PWM fan connections
• USB Headers: Four USB headers with seven downstream USB connections available
• Included Cable: 650mm 12V-2×6 cable with built-in sensor

Users can set a specific temperature limit within the L-Connect 3 application. If the GPU connector exceeds this threshold, the software sends an email notification to the user. The system then triggers an automatic PC shutdown to protect the components. This automated response prevents the connector from reaching dangerous temperatures that could cause permanent damage.

The EDGE Hub ADV adds safety monitoring that the standard EDGE Hub V2 does not offer. The cheaper V2 model lacks the GPU connector temperature sensing capabilities. We have previously covered the LIAN Li Edge Platinum V2 PSU, which focuses on power delivery rather than connector monitoring. This new hub fills a specific gap in thermal management for modern GPU installations.

The product ships as a dedicated accessory for PC builders concerned with cable safety. It provides a software-defined safety net for expensive graphics cards. Users receive an email alert and an automatic shutdown if the connection overheats. This feature ensures that power delivery issues do not result in hardware failure.
