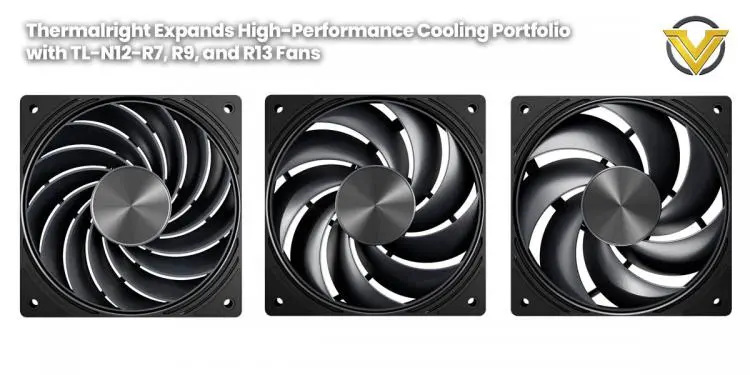

Thermalright released three new 120mm case fans designed to give builders precise control over airflow and static pressure. The TL-N12 series targets users who need specific cooling characteristics for different parts of their PC chassis. These fans use a shared platform with specialized blade counts to optimize performance for radiators, open airflow, or exhaust duties.
Three models optimize airflow and static pressure for different PC builds
The lineup includes the TL-N12-R7, TL-N12-R9, and TL-N12R-R13 models. Each unit measures 120 by 120 by 25mm and connects via a standard 4-pin PWM header. The company used a three-phase six-pole motor and dual ball bearings across all three variants to ensure durability and smooth operation.
Spec comparison
| Spec | TL-N12-R7 | TL-N12-R9 | TL-N12R-R13 |
|---|---|---|---|
| Max RPM | 2,400 | 2,400 | 2,400 |
| Airflow | 78.73 CFM | 85.35 CFM | 83.2 CFM |
| Static Pressure | 3.23 mmH2O | 2.95 mmH2O | 1.87 mmH2O |
| Noise Level | 31.48 dBA | 33.3 dBA | 31.5 dBA |
All three fans spin at a maximum speed of 2,400 RPM. The TL-N12-R7 features seven blades and delivers 78.73 CFM of airflow with a static pressure of 3.23 mmH2O. This configuration makes it suitable for dense CPU coolers or radiators where pushing air through resistance matters more than volume.
The TL-N12-R9 uses nine blades to achieve 85.35 CFM of airflow while maintaining 2.95 mmH2O of static pressure. The TL-N12R-R13 employs thirteen reverse-oriented blades to move 83.2 CFM of air with a lower static pressure of 1.87 mmH2O. The R13 model operates at 31.5 dBA, which keeps exhaust noise low even at peak speed.
Thermalright did not disclose pricing or release dates for the TL-N12 series. Buyers will need to wait for official store listings to know the cost or availability. The fans appear to be general-purpose cooling components rather than niche specialty items.
