GPU hotspot temperature drops 19°C with vertical side-panel mounting mod

We often assume standard PC cases provide adequate airflow for modern graphics cards, but a new hardware experiment suggests that conventional mounting positions leave significant cooling potential on the table. Modder Trashbench has demonstrated that moving a GPU to an unconventional vertical position near the side panel can drastically lower operating temperatures. This finding matters because it challenges the default assembly practices used by most builders and suggests that thermal performance might be more dependent on case geometry than previously thought. Users who struggle with hot components or noisy fans may find this approach worth investigating, even if it requires significant case modifications.

Trashbench modder achieves 19C hotspot reduction via side intake fans

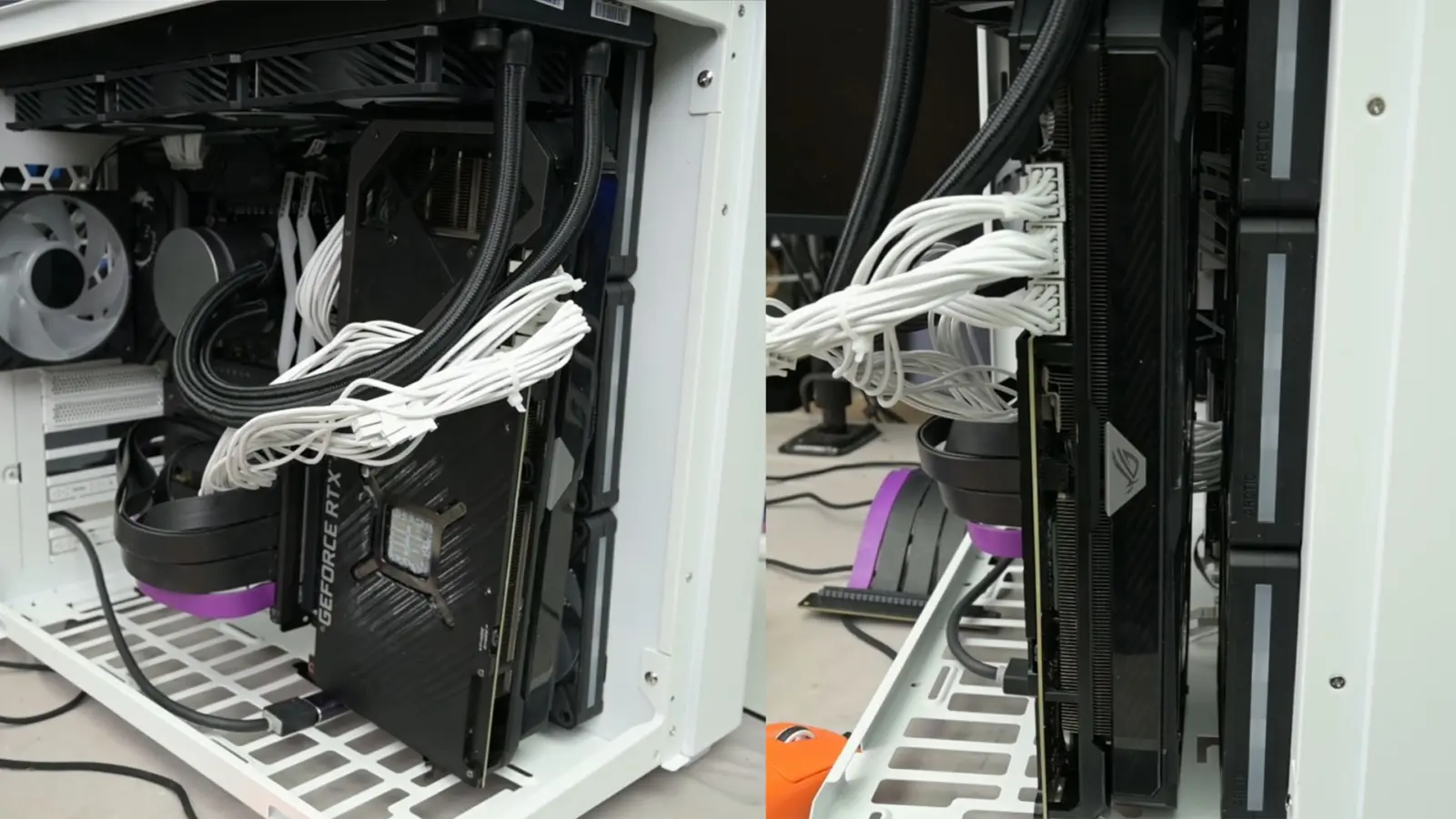

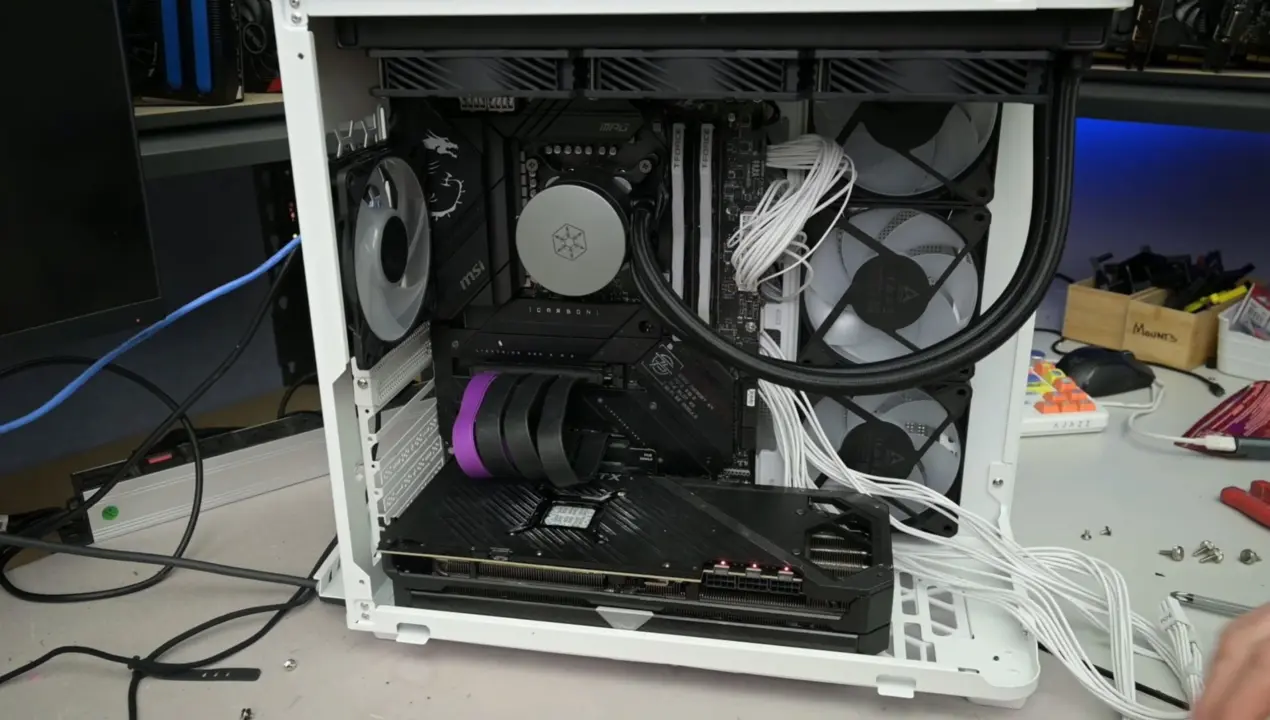

The experiment focuses on a standard desktop GPU installation but alters its physical orientation and airflow direction. Trashbench, known for unconventional hardware tests, mounted the graphics card vertically using a PCIe riser cable. He positioned the card directly in front of three intake fans located on the side or front panel of the case. This setup forces cool air to hit the GPU heatsink directly before it circulates through the rest of the chassis. The modder tested this configuration against his previous horizontal mounting setup to isolate the thermal differences.

Thermal Reduction Results

• GPU hotspot temperature: 19°C reduction
• GPU core temperature: 16.7°C reduction
• CPU temperature: 4°C reduction

The temperature reductions recorded during the test are substantial and warrant attention. The GPU hotspot temperature dropped by 19 degrees Celsius compared to the baseline configuration. The GPU core temperature also decreased by 16.7 degrees Celsius, with a video summary noting a 17 degrees Celsius reduction. VRAM and VRM temperatures saw significant drops as well, indicating that the direct airflow improves cooling across the entire graphics card module. In a secondary test, the CPU temperature dropped by approximately 4 degrees Celsius, suggesting improved overall case airflow.

Trashbench also tested an alternative placement to verify the effectiveness of the side-panel intake. Placing the GPU before the fans on the opposite side of the case did not improve cooling performance. This result confirms that the specific alignment with the intake fans is critical for the thermal benefit. The modder noted that this is not a practical way to assemble a standard computer due to the complexity of the setup. Most users would need to modify their case or use custom cables to replicate the result.

This experiment follows previous work by Trashbench, including a mod that cut an RTX 3080 hotspot by 14 degrees Celsius. The current test reinforces the idea that direct, high-volume airflow over the GPU is more effective than indirect chassis circulation. The results provide concrete data for enthusiasts willing to prioritize thermal performance over aesthetic or space efficiency. We can confirm that vertical side-panel mounting with dedicated intake fans significantly lowers GPU temperatures.
