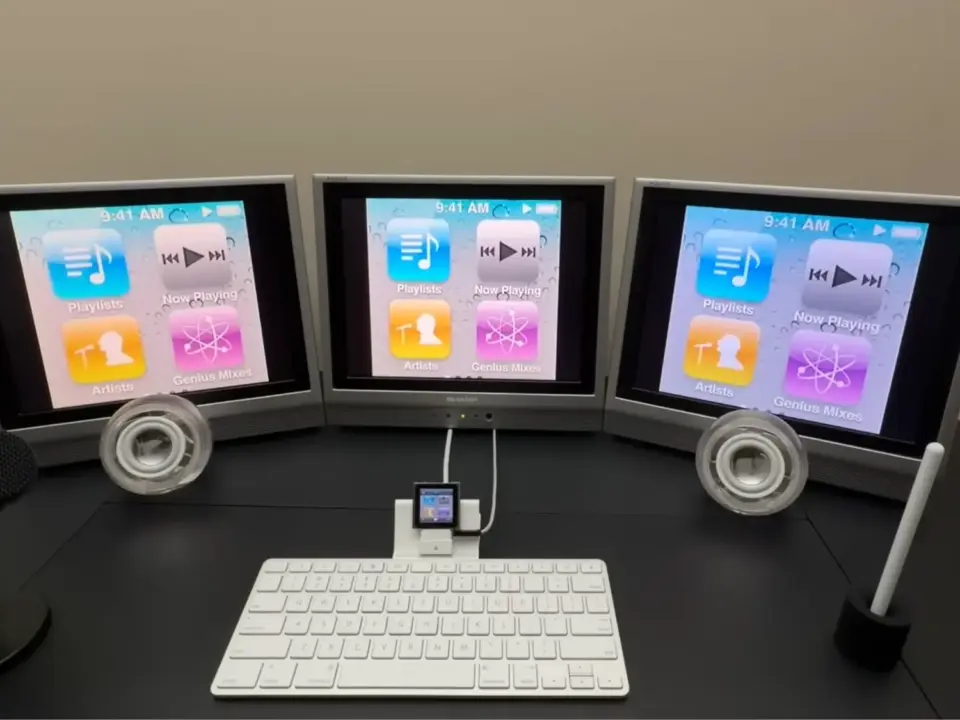

A 6th generation iPod Nano serves as the central hub for an unconventional triple-monitor display setup. The project repurposes the legacy media player to drive video output across three separate screens simultaneously.
The system relies on an Apple iPad Keyboard Dock to provide structural support and access to the device's composite video output. A 30-pin to composite cable routes the video signal from the Nano to three Sharp Aquos LCD televisions. This configuration allows the small portable device to function as the core of a multi-screen environment.
Audio output utilizes a pair of Apple Pro Speakers. The setup employs a JC Hi-Fi adapter from Juicy Crumb to bypass proprietary power requirements for the audio gear. A Maono XLR-to-3.5mm microphone handles voice recording for the system. The device runs on its original iPod operating system to manage these inputs and outputs.
Performance tests indicate that the Nano executes photo slideshows and music playback mirrored across all three screens with low latency. This demonstrates the capability of older Apple hardware to drive multiple displays when paired with appropriate adapters and docks.
The project highlights the versatility of legacy Apple accessories when combined with third-party audio and video components. It provides a practical example of extending the utility of discontinued products through creative hardware modifications.
